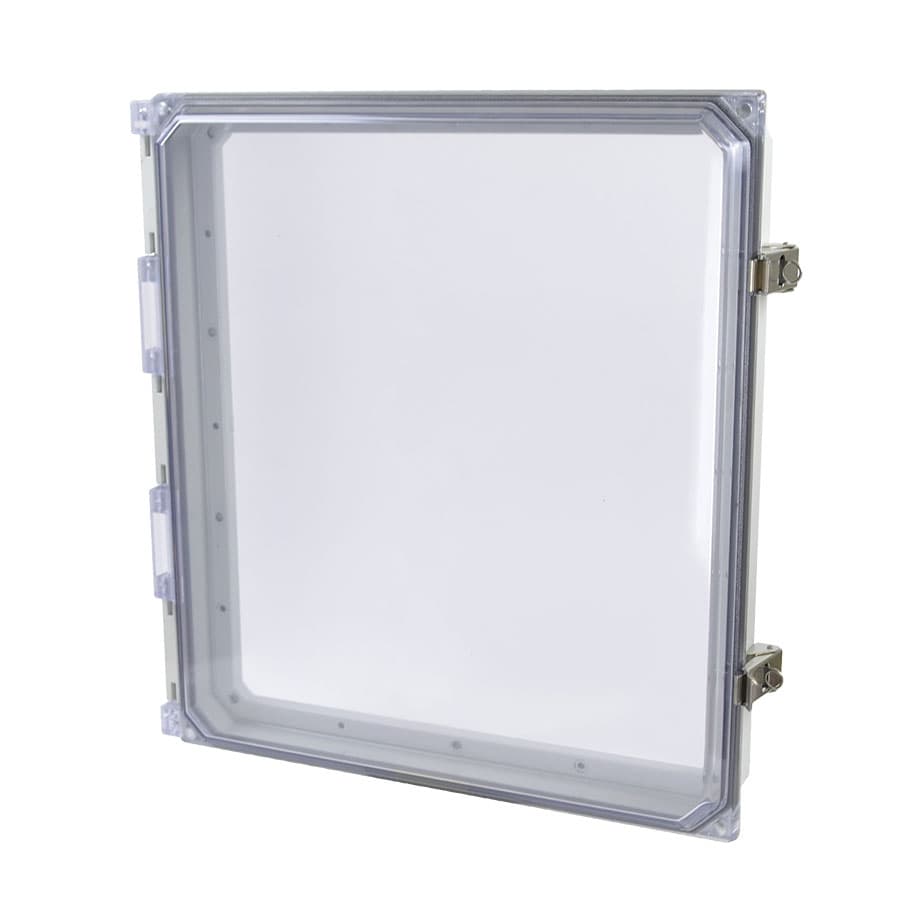

AMHMI164CCL Allied Moulded Products Enclosure Accessories

Product Details

• Material
  Polycarbonate
• Depth:
  24.384 mm
• Closure Type:
  Metal Snap Latch
• Height:
  403.098 mm
• Carton Quantity:
  1
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
• Material:
  Polycarbonate frame and clear polycarbonate cover
• Additional Materials:
  316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
• Color:
  Gray (RAL 7035) with clear cover
• Country of Origin:
  United States of America
• Application:
  Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform main
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
• Volume:
  491 cu mm
• Carton Weight:
  3.175 kg
• Cover Type:
  Clear Polycarbonate
• UNSPSC:
  39121302
• Mounting Description:
  10 Screws
• Width:
  357.378 mm
• Usable Depth:
  55.88 mm
