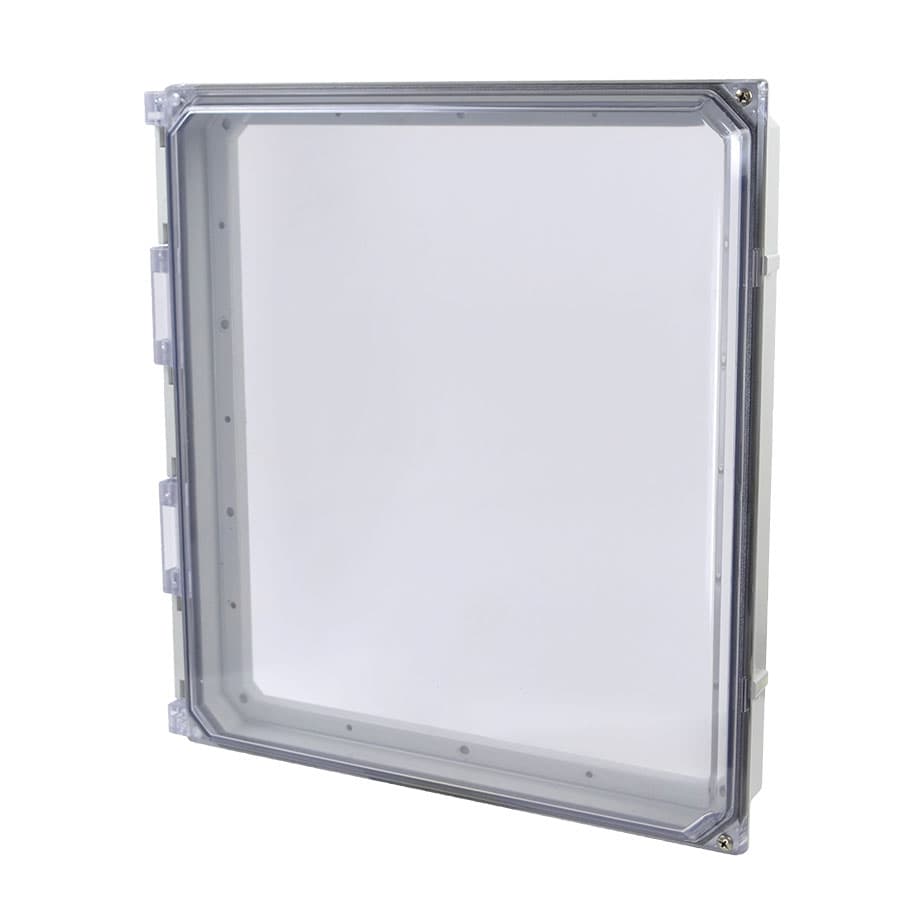

AMHMI164CCH Allied Moulded Products Enclosure Accessories

Product Details

• Width
  14.07 in
• Height
  15.87 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Width:
  14.07 in
• Carton Weight:
  7 lbs
• Closure Type:
  2-Screw
• Carton Quantity:
  1
• UNSPSC:
  39121302
• Color:
  Gray (RAL 7035) with clear cover
• Mounting Description:
  10 Screws
• Material:
  Polycarbonate frame and clear polycarbonate cover
• Height:
  15.87 in
• UPC:
  85339975380
• Depth:
  0.96 in
• Usable Depth:
  2.2 in
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opeining size o
• Cover Type:
  Clear Polycarbonate
• Volume:
  491 cu. in.
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
Additional Materials:
316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
Country of Origin:
United States of America
Application:
Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform main
