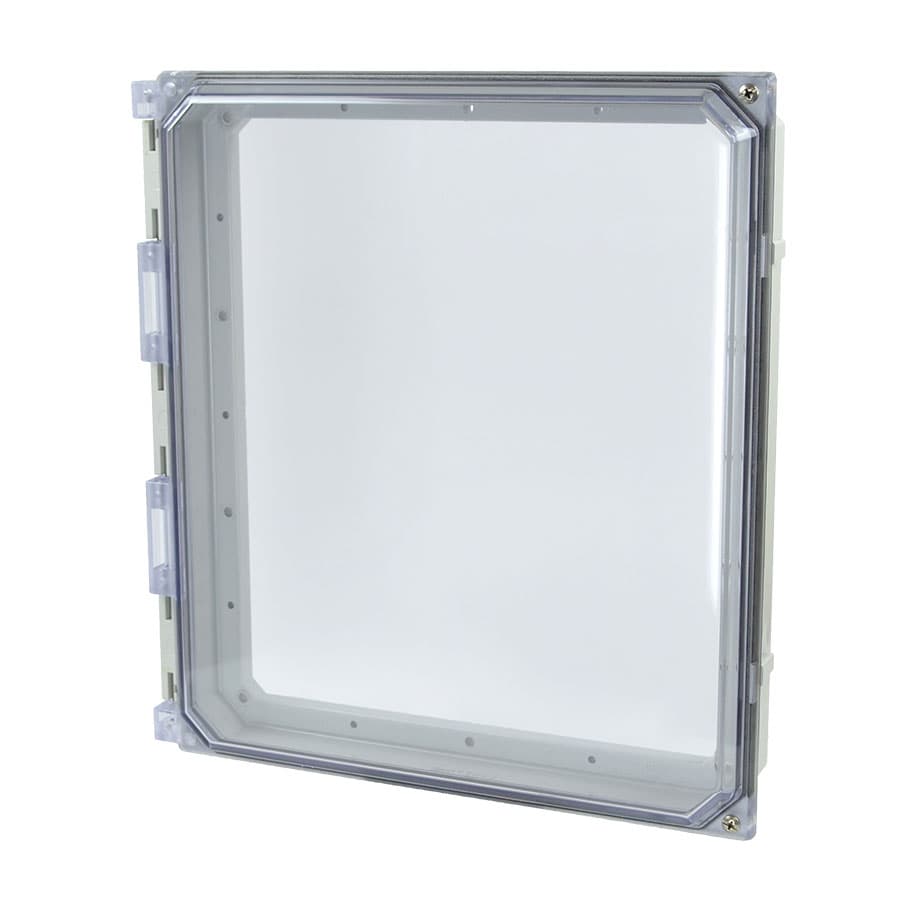

AMHMI142CCH Allied Moulded Products Enclosure Accessories

Product Details

• Width
  12.07 in
• Height
  13.95 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Color
  Gray
• Usable Depth:
  2.2 in
• Depth:
  0.96 in
• Additional Materials:
  316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
• Closure Type:
  2-Screw
• Volume:
  370 cu. in.
• Color:
  Gray (RAL 7035) with clear cover
• Carton Weight:
  5 lbs
• Material:
  Polycarbonate frame and clear polycarbonate cover
• Application:
  Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform main
• Height:
  13.95 in
• Cover Type:
  Clear Polycarbonate
• UPC:
  85339991922
• Mounting Description:
  10 Screws
• Country of Origin:
  United States of America
• Width:
  12.07 in
UNSPSC:
39121302
Standards:
Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
Carton Quantity:
1
Features:
Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
