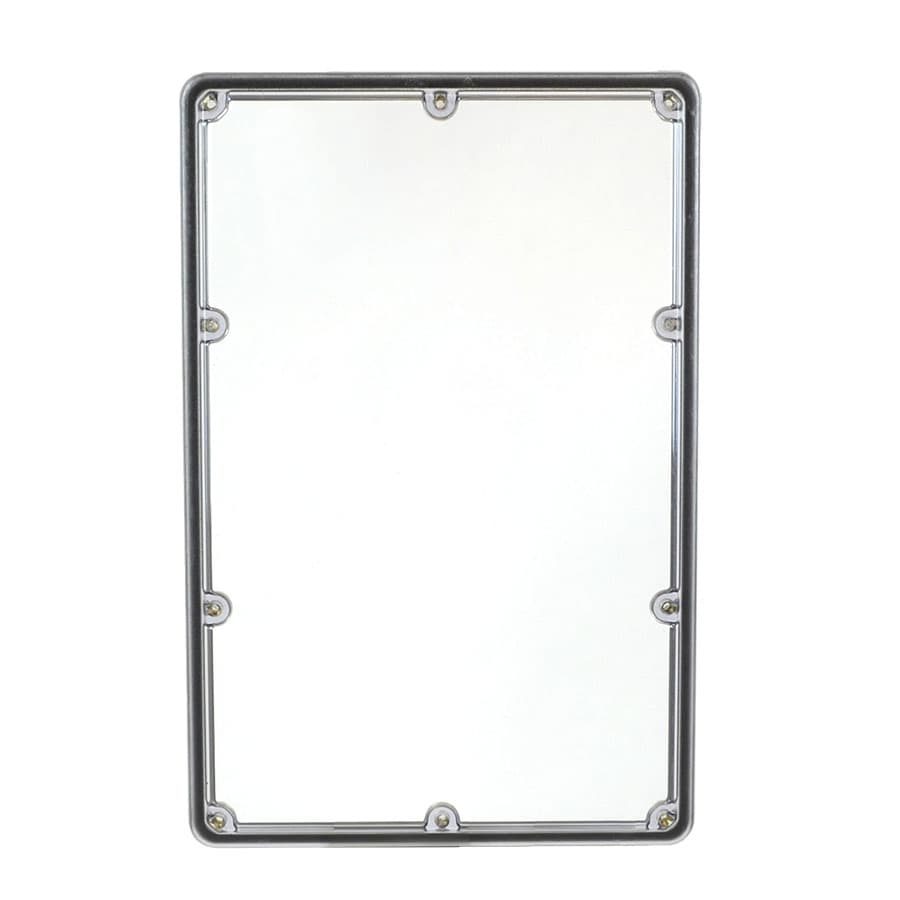

AMHMI138CX Allied Moulded Products Enclosure Accessories

Product Details

• Width
  9.7 in
• Height
  14.7 in
• Depth
  0.6 in
• Material
  Polycarbonate
• Height:
  14.7 in
• Carton Quantity:
  1
• Mounting Description:
  10 Screws
• Closure Type:
  4-Screw Lift-Off
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
• Carton Weight:
  2 lbs
• UNSPSC:
  39121302
• Width:
  9.7 in
• Country of Origin:
  United States of America
• UPC:
  85339975441
• Usable Depth:
  0.47 in
• Depth:
  0.6 in
• Material:
  Polycarbonate frame and cover
• Additional Materials:
  Brass inserts, Plated carbon steel internal hardware, Polyurethane (FIP) Formed-In-Place gasket system
• Color:
  Gray (RAL 7035)
• Cover Type:
  Opaque
Features:
Rigid clear window design with a gasket system encased in a continuous channel to provide an inspection point to see inside the enclosure, but also seal to the exterior of the enclosure and maintain it’s intended rating. UL recognized component for use wi
Application:
Inspection window for use on the exterior walls of NEMA Type 4X enclosures which allows the end user a viewing hole to see important equipment housed inside without having to access the enclosure.
