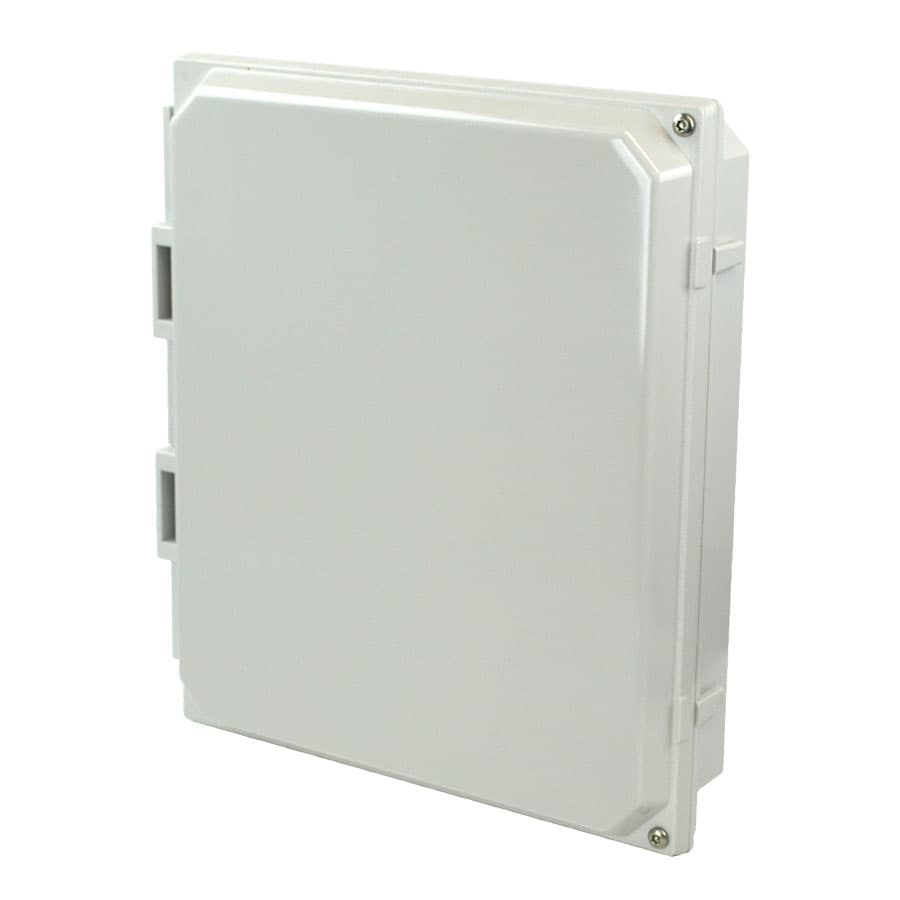

AMHMI120HTP Allied Moulded Products Enclosure Accessories

Product Details

• Width
  10.15 in
• Height
  11.93 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Volume:
  275 cu. in.
• Country of Origin:
  United States of America
• Cover Type:
  Opaque
• UNSPSC:
  39121302
• Height:
  11.93 in
• Carton Quantity:
  1
• Color:
  Gray (RAL 7035)
• Width:
  10.15 in
• Material:
  Polycarbonate frame and cover
• Depth:
  0.96 in
• UPC:
  85339991878
• Application:
  Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform main
• Mounting Description:
  8 Screws
• Usable Depth:
  2.27 in
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening of 10.4
• Carton Weight:
  4 lbs
Standards:
Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
Additional Materials:
316 stainless steel external hardware
