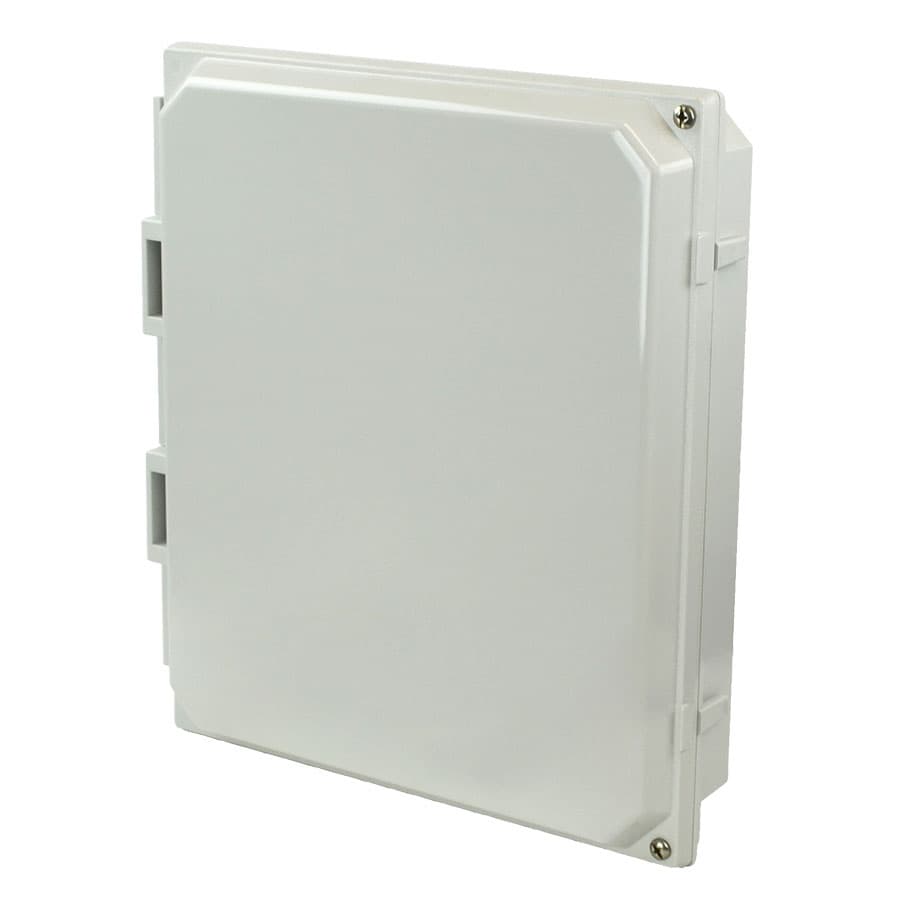

AMHMI120H Allied Moulded Products Enclosure Accessories

Product Details

• Width
  10.15 in
• Height
  11.93 in
• Depth
  0.96 in
• Material
  Polycarbonate
• UPC:
  85339991854
• Height:
  11.93 in
• Usable Depth:
  2.27 in
• Depth:
  0.96 in
• Carton Quantity:
  1
• Volume:
  275 cu. in.
• Application:
  Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform main
• Mounting Description:
  8 Screws
• Closure Type:
  2-Screw
• Color:
  Gray (RAL 7035)
• Cover Type:
  Opaque
• Material:
  Polycarbonate frame and cover
• Width:
  10.15 in
• UNSPSC:
  39121302
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
• Carton Weight:
  4 lbs
Additional Materials:
316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
Country of Origin:
United States of America
Features:
Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
