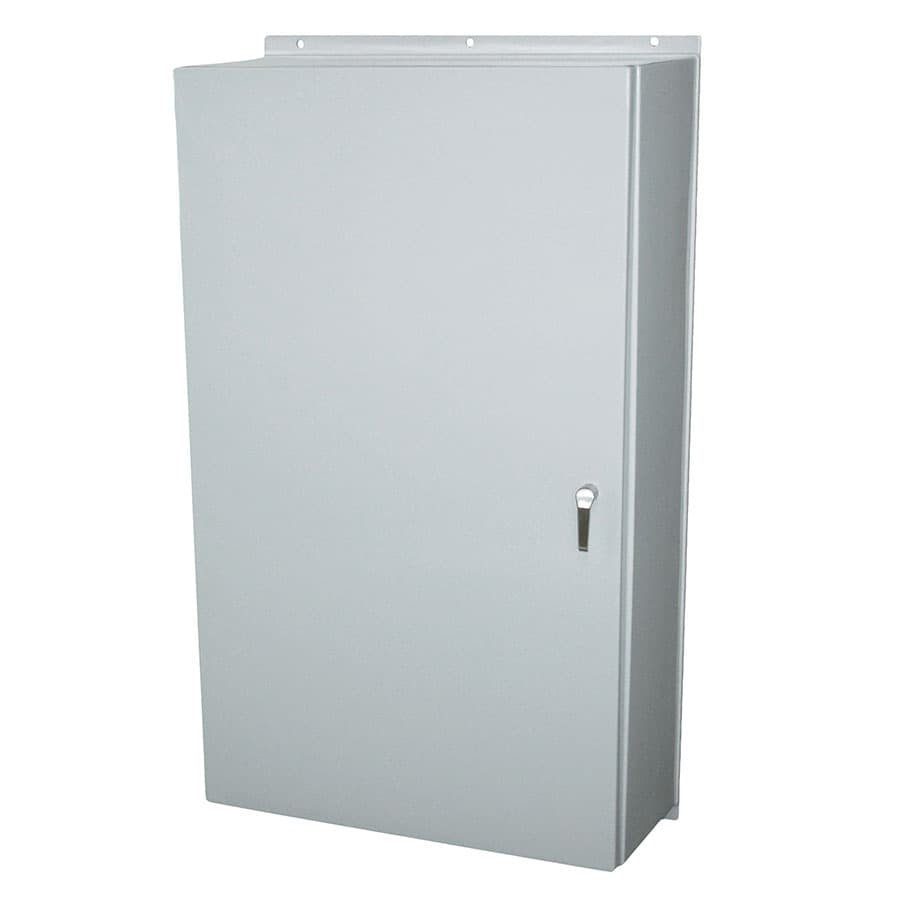

AM603616L Allied Moulded Products Electrical Enclosures

Product Details

• UL Standard
  508A
• UL CCN
  NITW
• UL File No.
  E120175
• Width
  36.04 in
• Height
  60.04 in
• Depth
  14.14 in
• NEMA Rating
  4X
• Material
  Fiberglass
• Color
  Gray
• Type
  Wallmount
• Door Qty
  1
• Enclosure Type:
  Wall Cabinets
• Depth:
  14.14 in
• Width:
  36.04 in
• Application:
  Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
• Volume:
  33929 cu. in.
• Mounting Description:
  Stainless steel feet fastened to back side brass inserts
• UNSPSC:
  39121324
• Height:
  60.04 in
• Cover Type:
  Opaque
Color:
Gray (RAL 7035)
UPC:
85339940074
Closure Type:
Metal Snap Latch
Brand:
Empire Series
Standards:
UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
Usable Depth:
14.27 in
Material:
ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
Additional Materials:
316 stainless steel external hardware (hinges/latches/fasteners), EPDM Spring loaded gasket, Plated alloy steel bonding fastener, Plated carbon steel internal hardware
Carton Weight:
122 lbs
Carton Quantity:
1
Country of Origin:
United States of America
Features:
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus molded-in mounting flanges and a spring loaded gasket system.
