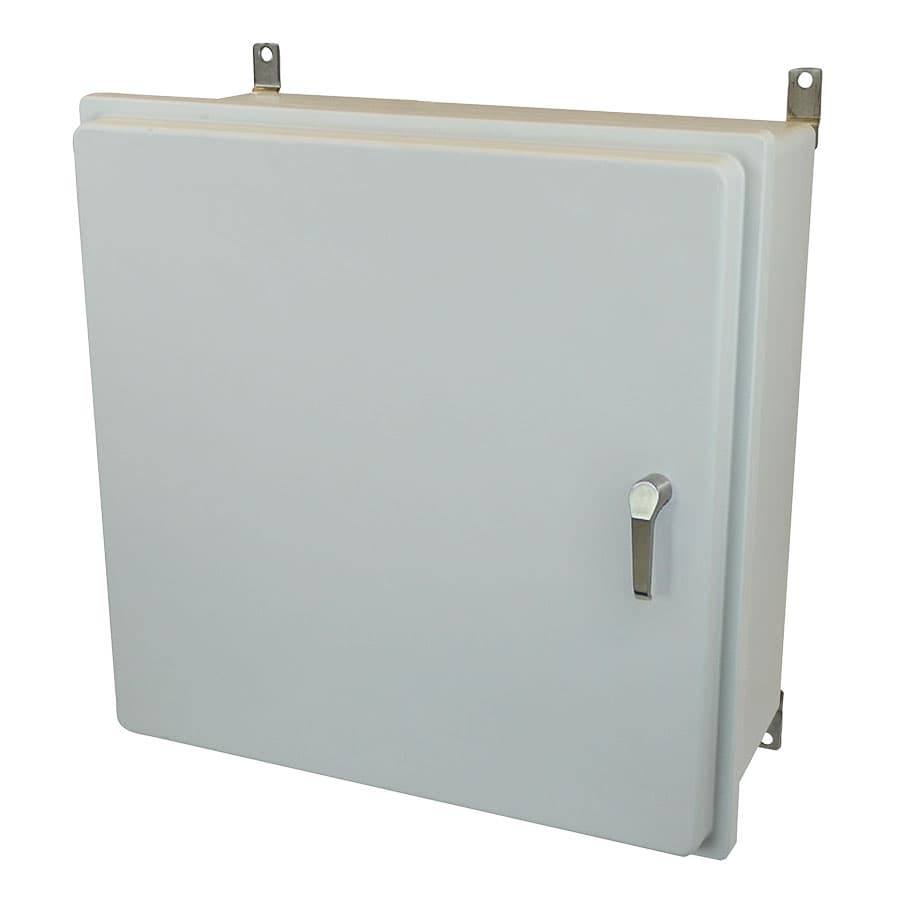

AM24248R3PT Allied Moulded Products Electrical Enclosures

Product Details

• Width
  24 in
• Height
  24 in
• Depth
  8 in
• Material
  Fiberglass
• Width:
  24 in
• Enclosure Type:
  Wall Cabinets
• Carton Quantity:
  1
• Cover Type:
  Opaque
• Country of Origin:
  United States of America
• UNSPSC:
  39121324
• Usable Depth:
  8.65 in
• Depth:
  8 in
• Material:
  ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
• Mounting Description:
  Stainless steel feet fastened to back side brass inserts
• Volume:
  5691 cu. in.
• Brand:
  Control Series
• UPC:
  8533998412
• Closure Type:
  3-Point Handle
• Carton Weight:
  26 lbs
• Height:
  24 in
Standards:
UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
Additional Materials:
316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
Color:
Gray (RAL 7035)
Features:
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous chann
Application:
Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
