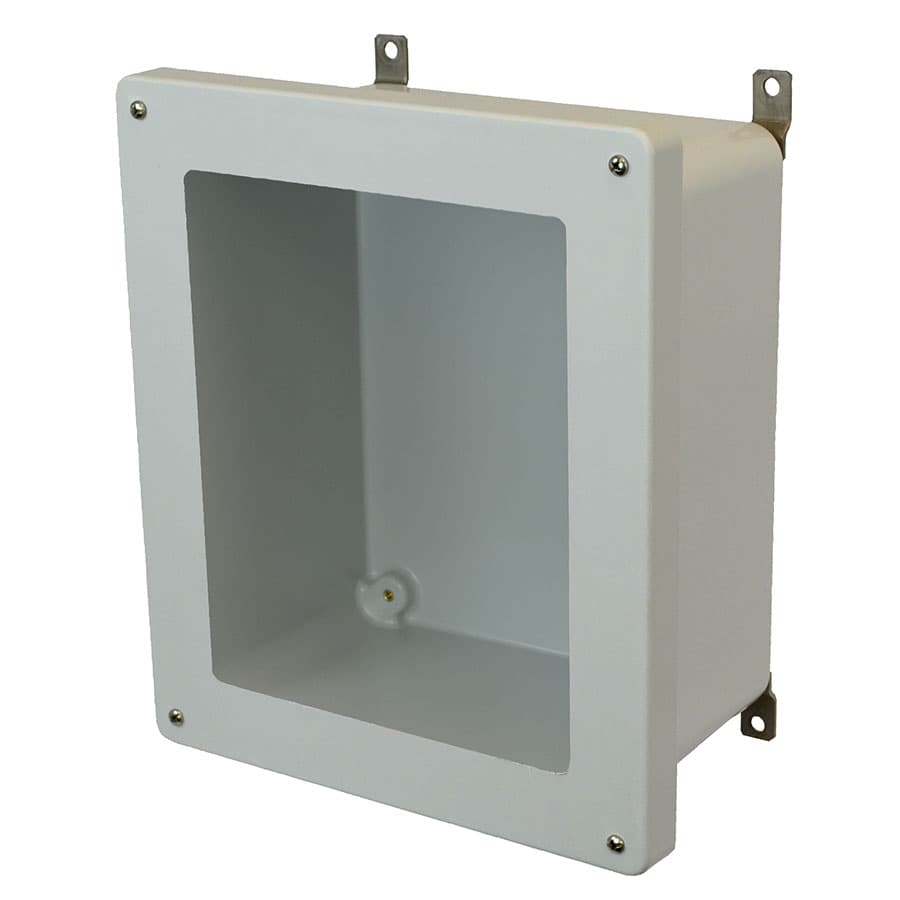

AM1648P30 Allied Moulded Products Pushbutton Enclosures

Product Details

• UL Standard
  508A
• UL CCN
  NITW
• UL File No.
  E120175
• Width
  14.4 in
• Height
  16.27 in
• Depth
  8 in
• NEMA Rating
  4X
• Material
  Fiberglass
• Color
  Gray
• Type
  Wallmount
• Door Qty
  1
• Standards:
  UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
• Cover Type:
  Opaque
• UPC:
  85339916581
• Closure Type:
  4-Screw Lift-Off
• Enclosure Type:
  Pushbutton
• Color:
  Gray (RAL 7035)
• Depth:
  8 in
• Width:
  14.4 in
• Country of Origin:
  United States of America
Height:
16.27 in
Volume:
1905 cu. in.
Carton Weight:
14 lbs
Mounting Description:
Stainless steel feet fastened to back side brass inserts
Brand:
AM Series
Usable Depth:
7.68 in
UNSPSC:
39121326
Carton Quantity:
1
Additional Materials:
316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
Material:
ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
Features:
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous chann
Application:
Designed to protect push-button switches from damage and wear, these enclosures have holes for mounting push buttons and an internal compartment to house associated wires and mechanisms. Push buttons are often used for operating industrial machines or pro
